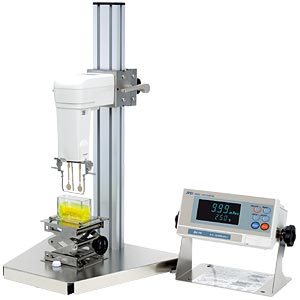

SV 10 Vibro Viscometer

Price BDT. 315000/-

Product Code : PD-648
Brand Name : AND Company Ltd.
Model : SV 10
Category : A & D Japan
Origin : JAPAN
Discount (%) : 0 %
Stock Status : AVAILABLE

DESCRIPTION :

External Input / Output

RS-232C interface

Accessories

Click here to see the complete accessory list.

Standard Cup Set for SV-1A ?AX-SV-55) Standard Cup Set for SV-10A/100A (AX-SV-54)

Example Measurements with the Tuning Fork Vibro Viscometer (SV/SV-A Series)

The SV-10/SV-10A series of tuning fork vibro viscometers are capable of continuous measurement over a range of viscosities from the extremely low (0.3 mPa·s) to the high (10,000 mPa·s).
These viscometers are able to easily measure the state transition from sol to gel as there is no need to change sensors during measurement.
Measurement intervals can be set freely allowing for continuous 24-hour measurement or measurement of any long term viscosity change.

Gel point: The liquid to solid phase change :

Example) Gelatin, agar, glucomannan, thickening stabilizer, hydrogel

Cloud point: Micelle structure change in a surfactant :

Features:

1. Wide-range, continuous measurement without replacing the sensor plates

2. Simultaneous measurements of temperature and viscosity

3. Windows Communication Tools WinCT-Viscosity provided as standards.

4. Easy set up and very quick measurement

5. Excellent repeatability (1% of the measured value by standard deviation)

6. Extremely high sensitivity (detects a viscosity as low as 0.3 mPa·s)

7. Simplified calibration function (for SV-10)

8. Little interference to the sample fluid

9. Easy cleaning after measurement

10. Possible to measure fluids in motion

SPECIFICATION :

Model	SV-10
Measurement Method	Tuning Fork Vibration Method (Natural Frequency at 30Hz)
Viscosity Measurement Unit	mPa·s, Pa·s, cP, P
Viscosity Measurement Rang	0.3~10000mPa·s
Repeatability	1% of Reading (S.D., 20~30°C, No condensation)
Minimum Sample Amount	10ml~ (with Optional Small Sample Cup)
Temperature Measurement	0~160°C / 0.1°C(32~320°F/0.1°F)
Display	Vacuum Fluorescent Display (VFD)
Power Supply	AC Adaptor (Approx. 14VA)
External Dimensions / Mass	Main Unit (with Stand): 332 (W)×314 (D)×536(H) mm / Approx. 5.0 kg Display Unit: 238 (W)×132 (D)×170(H) mm / Approx. 1.3 kg
Standard Accessories	Sample Cup (45 ml, Polycarbonate × 4 pcs), CD-ROM (WinCT-Viscosity), AC Adaptor, Connection Cable (1.5m), RS-232C Cable (25P-9P)
